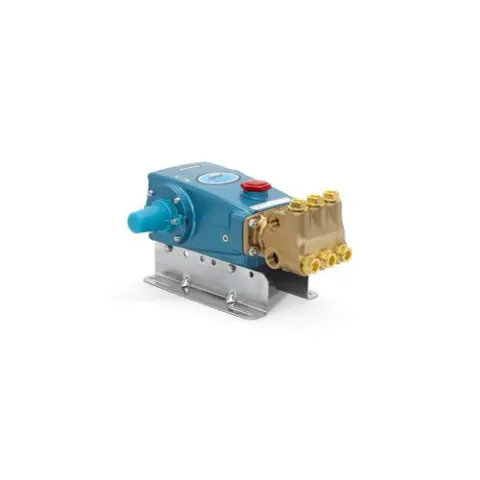

Cat Pumps 660P 10 GPM 15 Frame Plunger Pump, 3000 PSI, Manifold

Cat Pumps, 660P, 10 GPM 15 Frame Plunger Pump, 3000 PSI, Manifold with Pulsator Port

This is a triplex [three plunger rods] positive displacement, reciprocating, plunger pump, constructed of a forged brass manifold, 304SS valve assemblies, solid ceramic plungers and standard NBR [Buna-N] seals and o-rings.

Features

Superior Design

• Triplex plunger design provides smoother liquid flow.
• V-Packings are completely lubricated and cooled by the liquid being pumped.
• Special ported manifold permits an external flush liquid providing cooling for hi-temp liquids and lubrication for low lubricity liquids.
• Lubricated Lo-Pressure Seals provide double protection against external leakage.
• Oil bath crankcase assures optimum lubrication.
• Close tolerance concentricity of the ceramic plunger offers perfect alignment and maximizes seal life.

Quality Materials

• Precision design 304 and 316 Stainless steel valves and seats are hardened and polished for ultimate seating and extended valve life.
• Bronze or Duplex Stainless Steel manifolds are strong and corrosion resistance.
• Special concentric, high-density, polished, solid ceramic plungers provide a true wear surface and extended seal life.
• Specially formulated, CAT PUMP exclusive, V-Packings offer unmatched performance and seal life.
• Die cast aluminum crankcase provides high strength, minimum weight and precision tolerance control.
• Chrome-moly crankshaft gives unmatched strength and surface hardness.
• Oversized crankshaft bearings with greater loading capacity mean longer bearing life.

Easy Maintenance

• Wet-end is easily serviced without entering crankcase, requiring less time and effort.
• Inlet and discharge valve assemblies interchange for easier maintenance without disturbing piping.
• Preset packings mean no packing gland adjustment is necessary, reducing maintenance costs.
