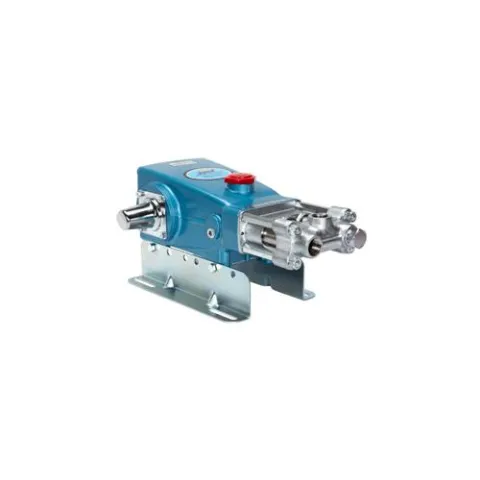

Cat Pumps 623.0005 10 Frame Piston Pump, Inverted Inlet and Manifolds

Cat Pumps, 623.0005, 6.0 GPM 10 Frame Piston Pump, 1200 PSI, Inverted Inlet and Discharge Manifolds

This is a triplex [three piston rods] positive displacement, reciprocating, piston pump, constructed with brass manifolds, 304SS valve assemblies, chrome-plated 304SS cylinders and sleeves and standard NBR [Buna-N] seals and o-rings. Its low RPM is designed for belt drive. The Uniflow design Features a mechanically actuated inlet valve providing a continuous forward fluid flow and strong suction.

Features

• Triplex Uniflow design provides continuous forward liquid flow for smooth operation.
• Wetted cups and floating pistons are lubricated and cooled by pumped liquid for long cup life.
• Mechanically actuated inlet valves give strong lift and easy prime.
• Oil bath crankcase assures optimum lubrication.
